Special cylinders

SPECIAL HYDRAULIC CYLINDERS: original designs developed to meet specific needs

– Design developed according to specifications

– Materials selected in line with the specific use and working environment

Based on your requirements, we select the most suitable product for your intended use.

Below are a few examples:

— Steering cylinder

— Cylinder with two coaxial strokes

— Cylinder with anti-corrosion treatment

— Cylinder with rod feed

— Cylinder with end-of-stroke damper

— Cylinder with power supply unit

— Cylinder with special seals

— Cylinder with end-of-stroke sensor

— Cylinder with linear position sensor, etc.

This list is not exhaustive, so feel free to contact us to discuss your requirements.

- In-built bottom-mounted valve

- With magnetostrictive linear sensor

- Anti-corrosion coating and inductive end-of-stroke sensor

- Steering cylinder

- Cylinder with movable base

Below are some of the most recent products we have manufactured, demonstrating our diverse range of expertise and our capacity to adapt our products to meet your requirements

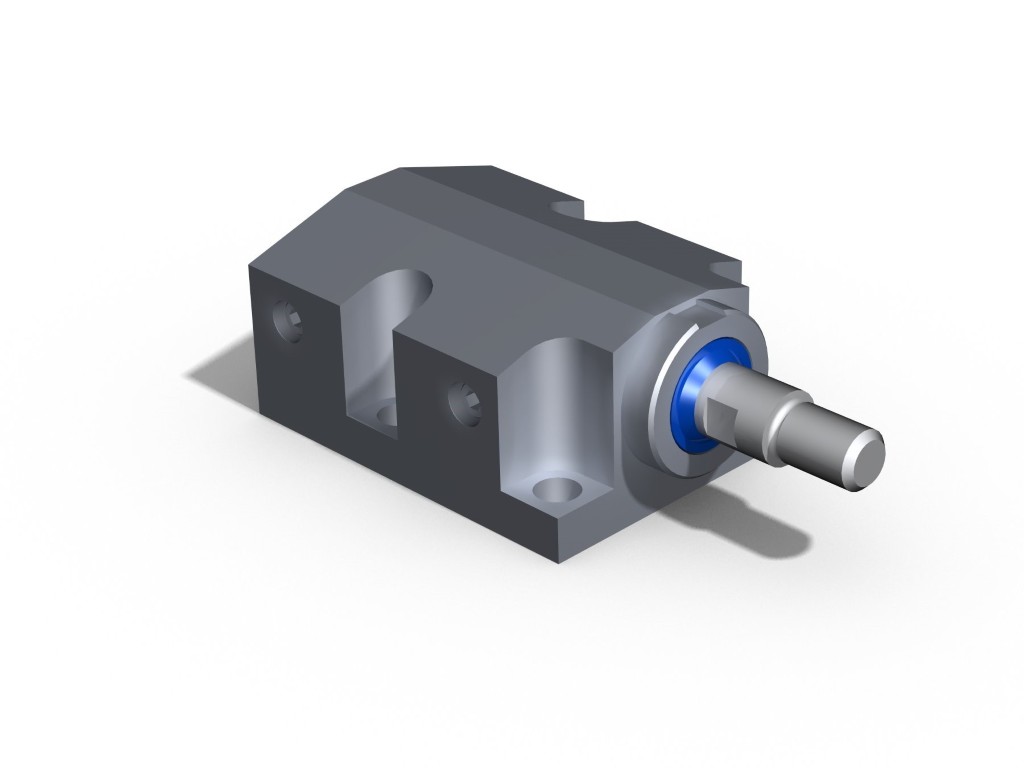

Double-acting cylinder 35/20 stroke 15

– Operating pressure 70 bar in oil when pushing

7 bar in air when pulling

– Test pressure 150 bar

– Cylinder machined from solid block

– Anti-corrosion treatment applied to cylinder

– 2 side supply ports + 2 side bleed ports

– Primer paint

– Used for food processing facilities

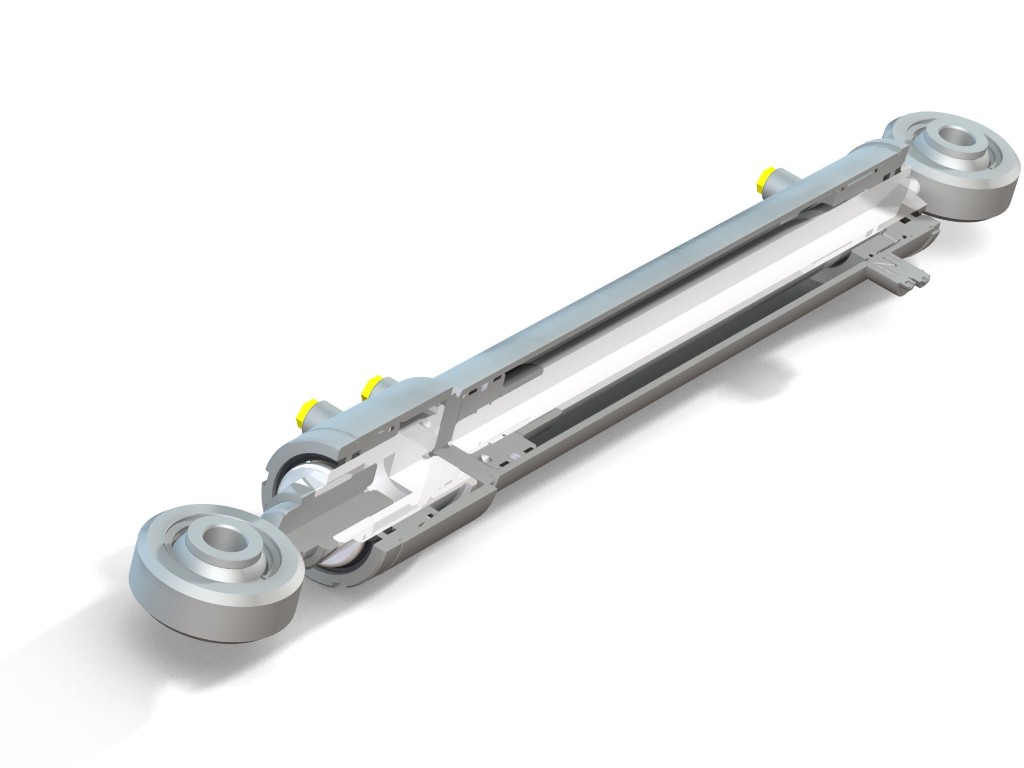

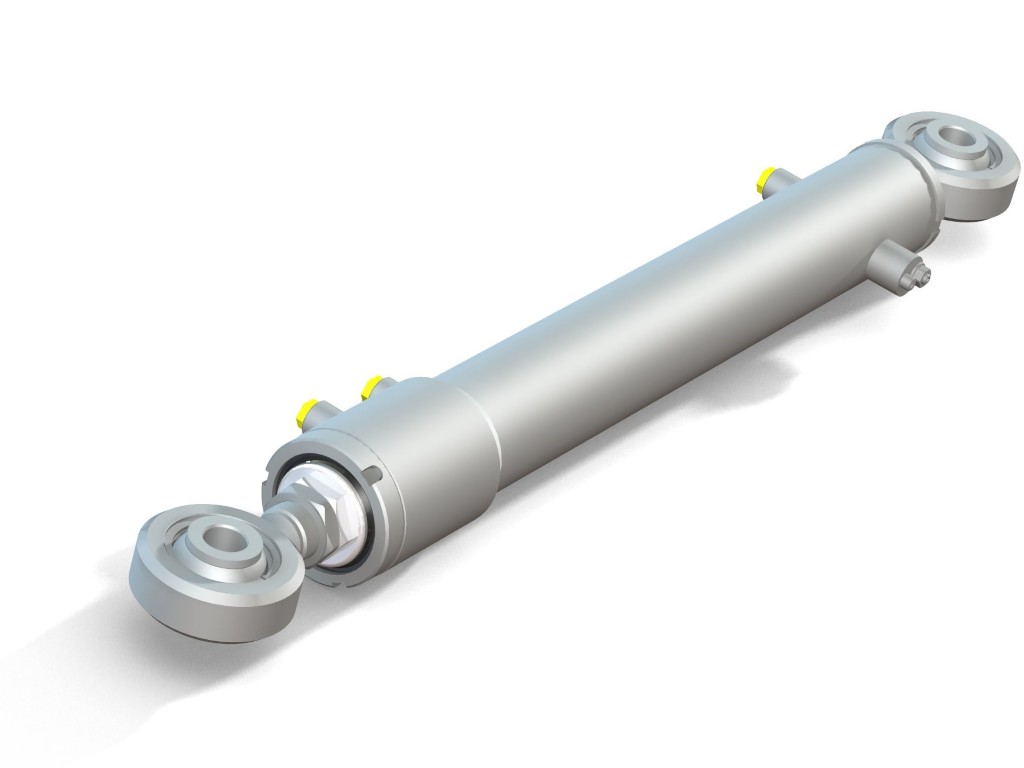

Double-acting cylinder 80/45 stroke 380 + single-acting cylinder Ø 65 stroke 40

– End-of-stroke damper at rod retraction and extension points

– Spherical clevis + reduction rings

– Adjustable centre-to-centre distance for SA cylinder + Screw-in rear ball joint

– Chrome- and nickel-plated rods

– Test pressure 210 bar

– Used for agricultural machinery

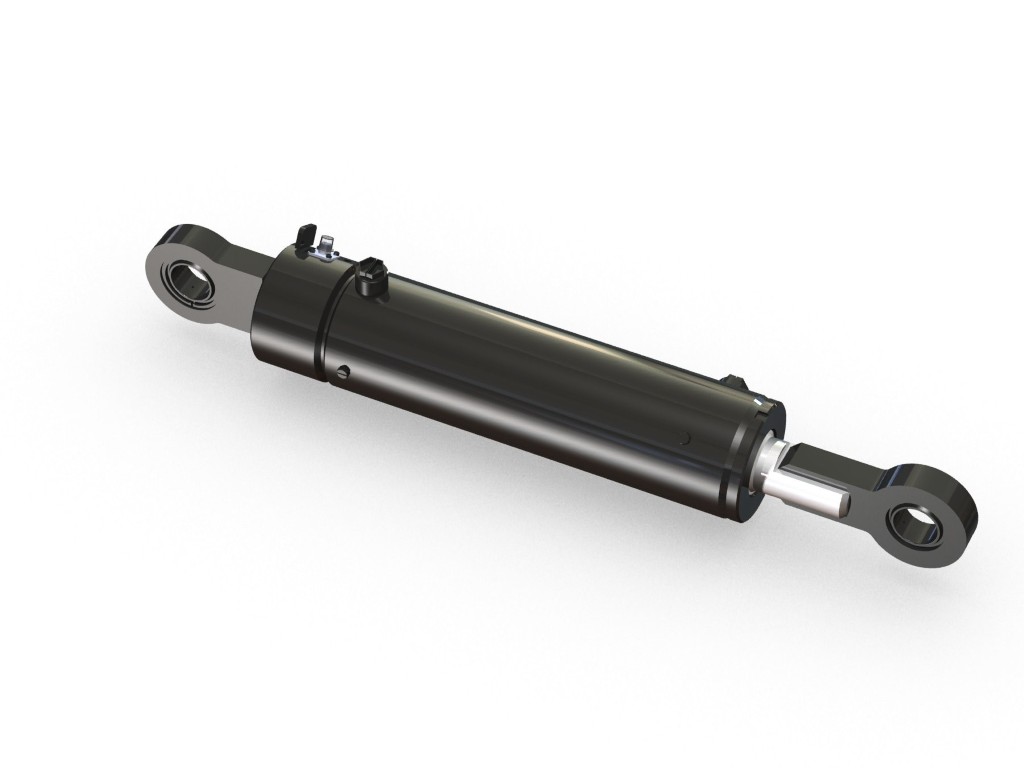

Double-acting cylinder 100/50 stroke 250

– Magnetostrictive linear position sensor

– Spherical clevis made of special steel

– Test pressure 250 bar

– Composite seals

– Chrome-plated stainless-steel rod

– Special primer paint + heavy-duty finish

– Used for automated port machinery

Double-acting cylinder 100/80 stroke 2 x 775

– Test pressure 210 bar

– Balancing valve

– 25-micron chrome-plated rod

– Primer paint

– Used for earthmoving machinery

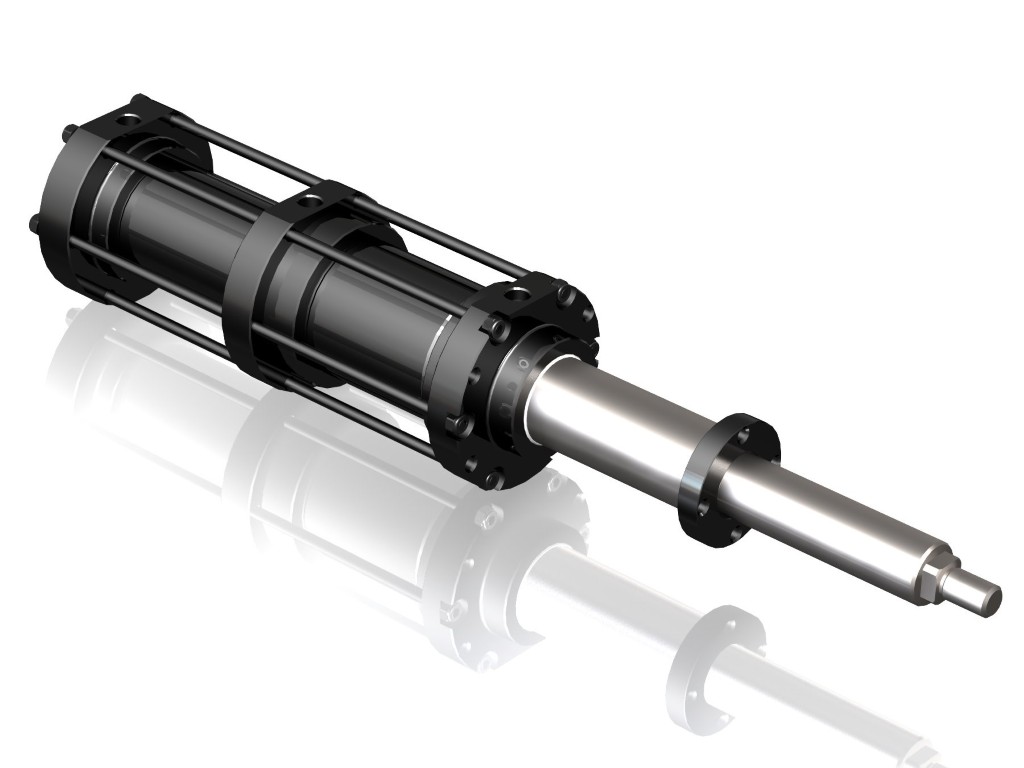

Seamless cylinder with 2 coaxial rods

– Test pressure 80 bar

– Seamless assembly (with tie rods)

– Chrome-plated rod

– Primer paint

– Used for agricultural machinery

– Bolted and threaded rod assembly

– 2 rods with independent extension

– Simultaneous retraction of 2 rods

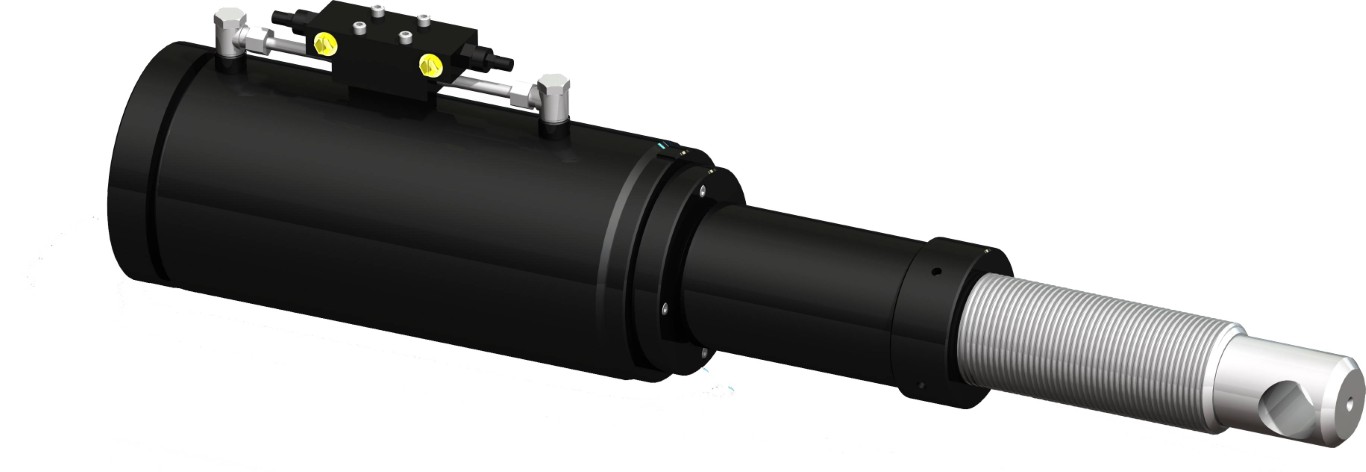

Cylinder with mechanical locking system

– Double balancing valve

– Threaded rod end + nut for mechanical locking of rod extension

Cylinder with rod feed

– Double-acting cylinder with rod feed

Telescopic cylinder

– Single-acting cylinder with 2 chrome-plated stainless-steel stages

Cylinder with turning block

– Supply via valve block to reverse movement above a defined pressure

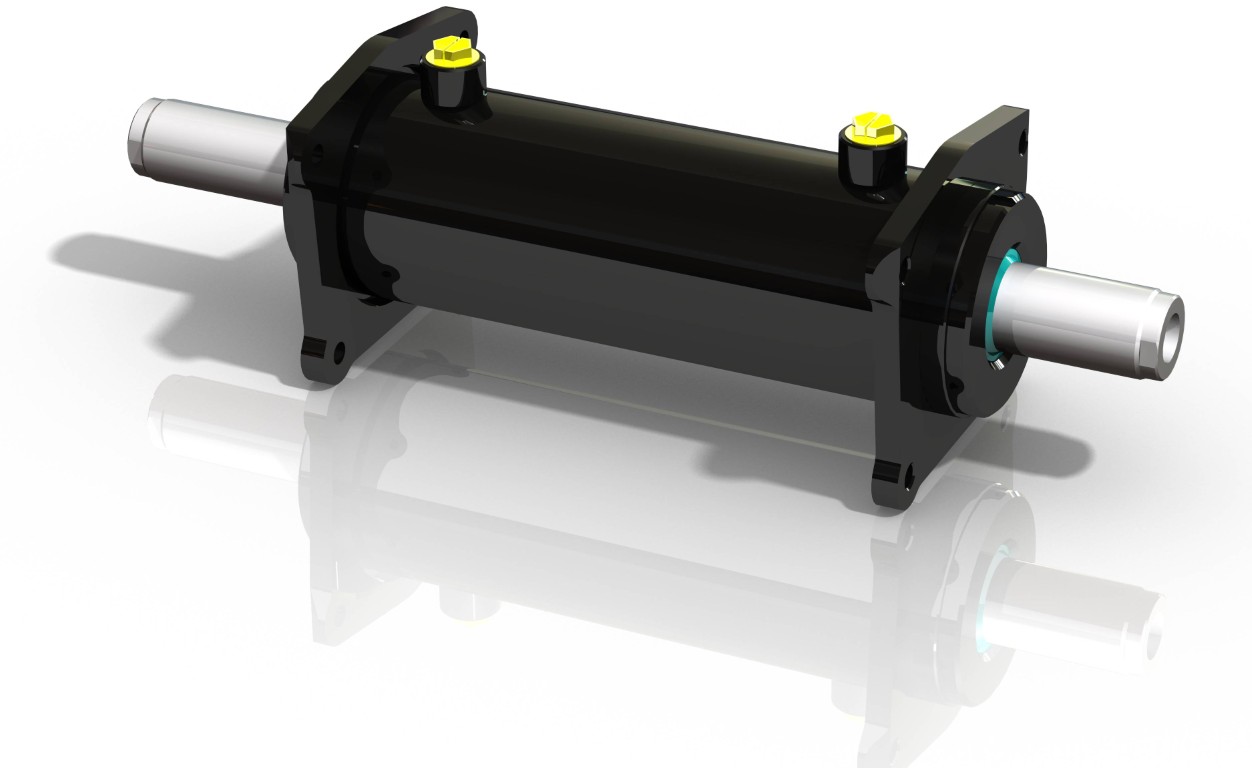

Steering cylinder

– Through rod, single piston
